Bigboy 100 Naked
Bigboy 100 Naked
0 km/h
Max Speed
0 s
Fast acceleration 0 to 50 km/h in
0 km
Range
Overview
Technical Specifications
| Parameter | Bigboy 100 Naked |
|---|---|
| Intelligent System | |
| App+ Intelligent System | Easycool go App+Intelligent system |
| Battery | |
| Battery Concept | ATL LFP battery |
| Battery Capacity | removable 2*74V 28AH |
| Motor | |
| Motor Rated Power | 6000W One Side Hub Motor |

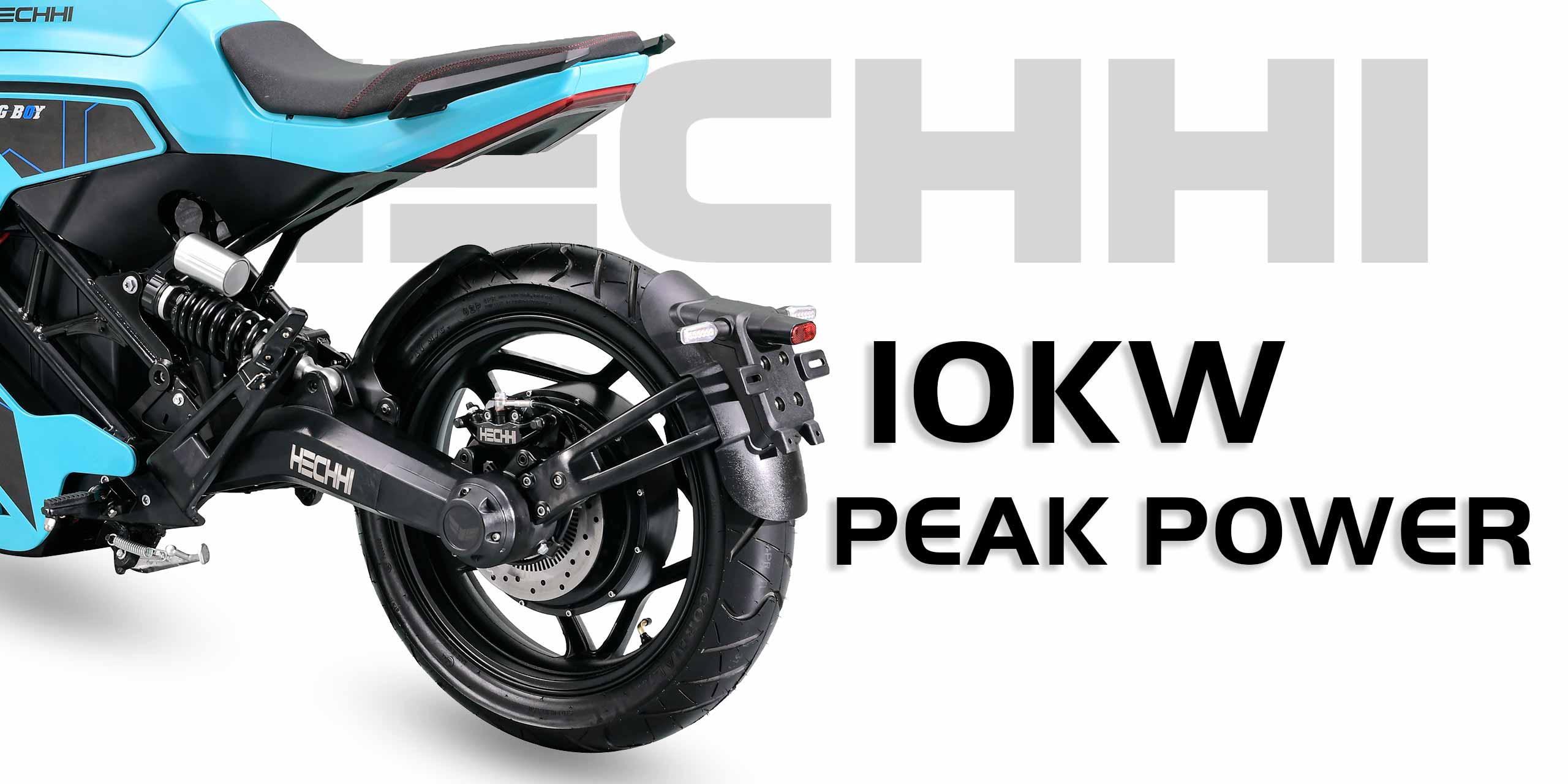

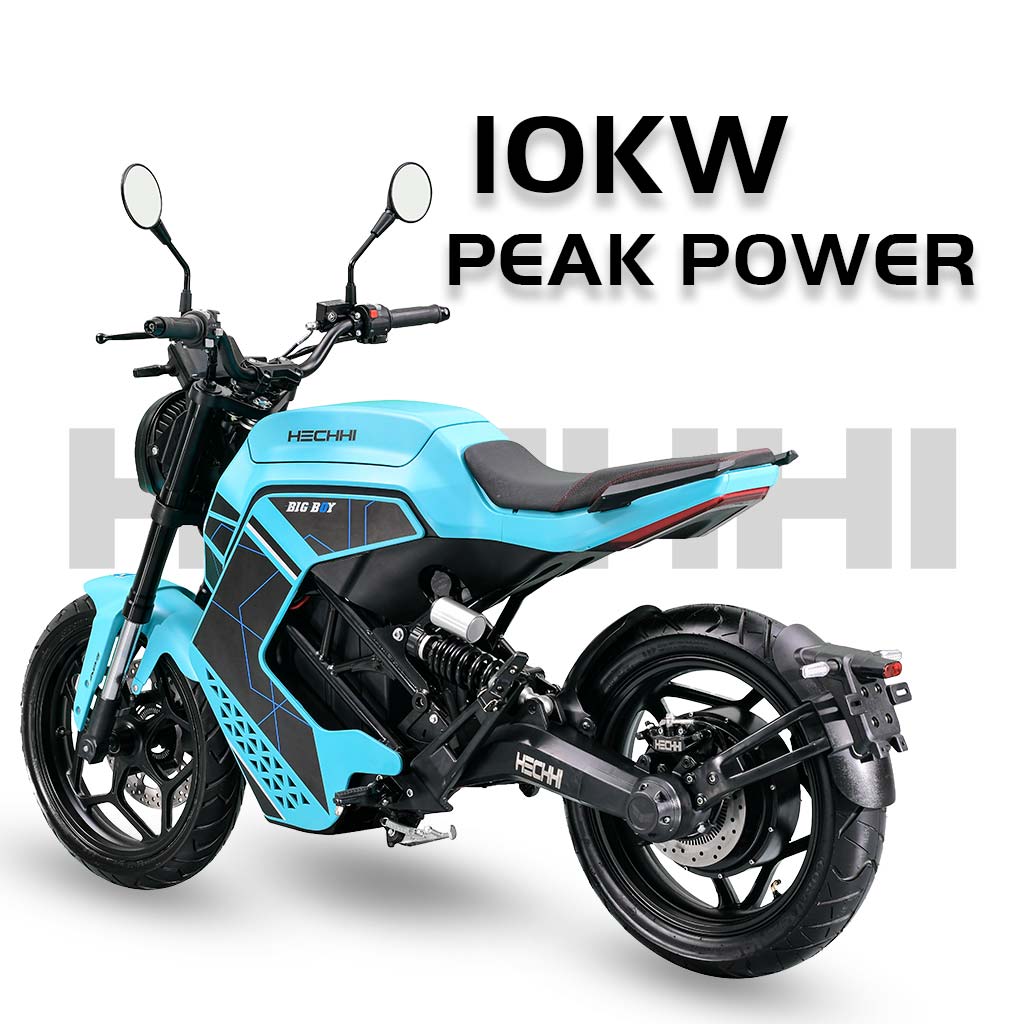

| Peak Power | 10KW |
| Charger | |
| Input Voltage | 220-240VAC |
| Input current | 84V 10A Outside Charger |
| Charging Time | 6h |
| Performance (Factory Setting) | |
| Max. Speed (GPS) | 105km/h |
| Distance Range | 110km(45Km/h) / 80KM(70KM/H) / 60KM (90K/H -100KM/H) |
| 0-50KM/H | 4.5S |
| Climb Capacity | ≥14° |
| Basic Info. | |
| Weight | 150KG |
| LxWxH | 1986×800×1024 mm |
| Wheelbase | 1375mm |
| Ground Clearance | 180mm |
| Seat Height | 800mm |
| Front Tyre | 110/70-17 |
| Rear Tyre | 130/70-17 |

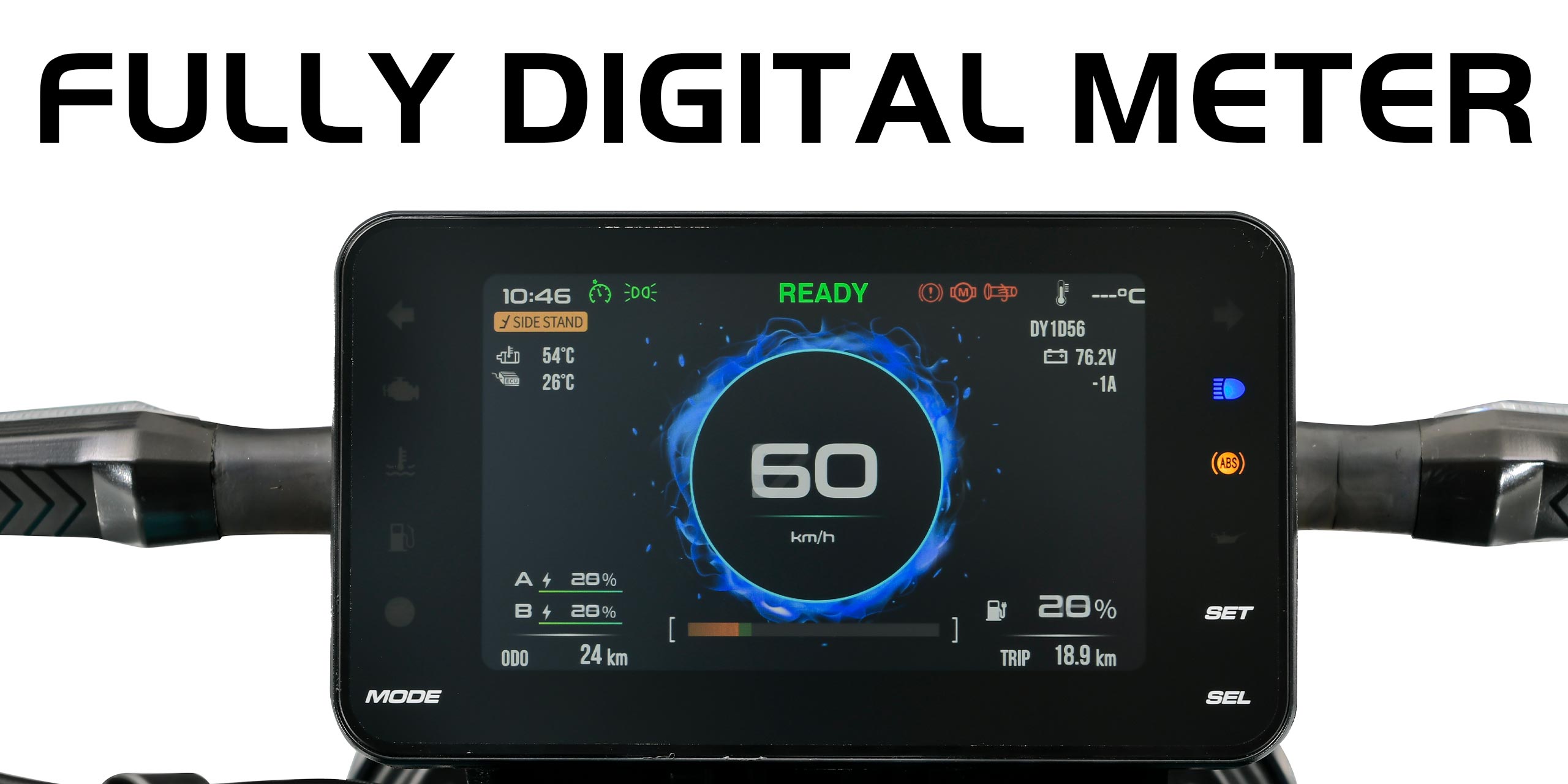

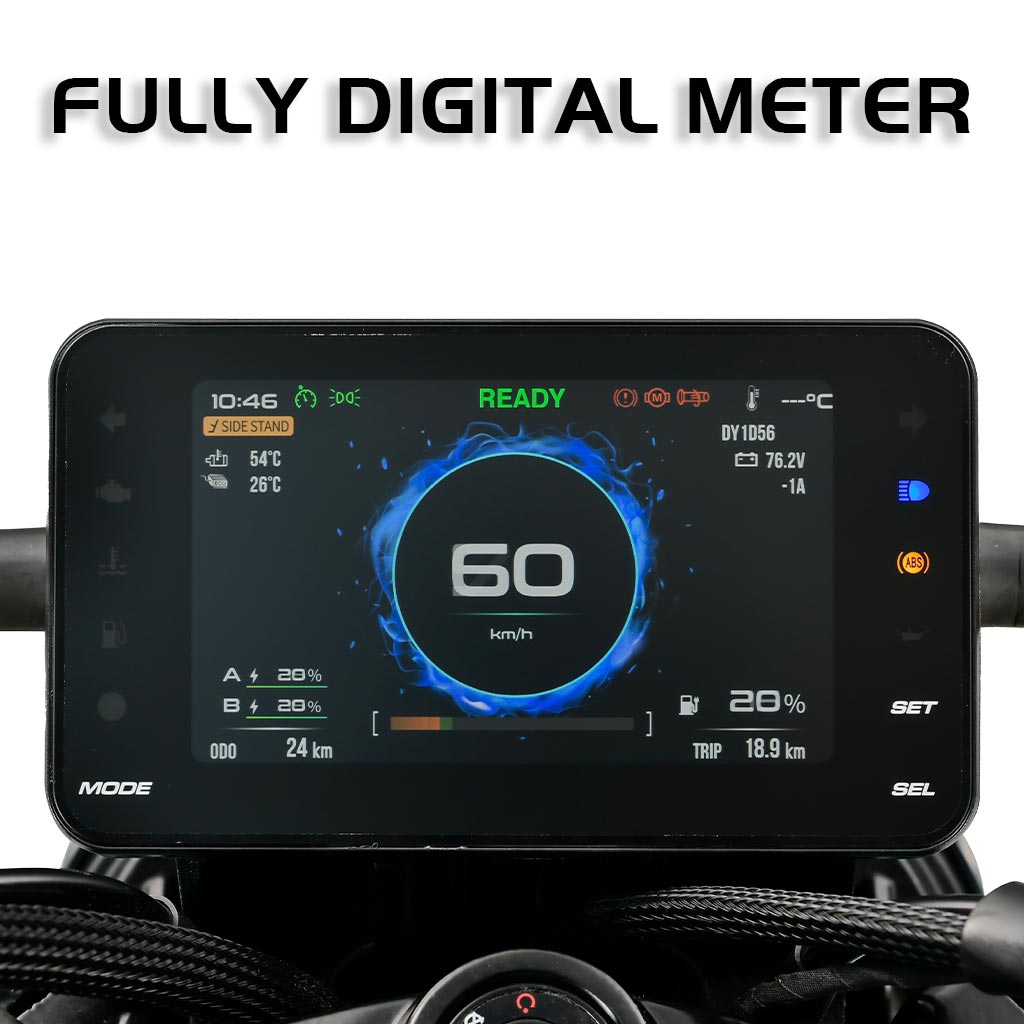

| Speedometer | TFT Smart speedometer |
| Brakes | ABS+TCS (Fr./Re. Disc) |
| Rim | Fr 3.0-17 / Rr 3.5-17 |
| Fr/Rr Suspension | Fr Upside Down Absorber / Re Gas Absorber |
| Color | Mat Black/Mat Green/White/Black |
| Loading Qty | 46 units/40HQ |
| Warranty | |
| Battery | 3 years and 1500 cycle not less than 70% |
| Motor and Controller | 3 years |
| Charger | 2 years |
| VCU | 3 years |
| Warranty Term on Motorcycle | 20000KM or 2 years |

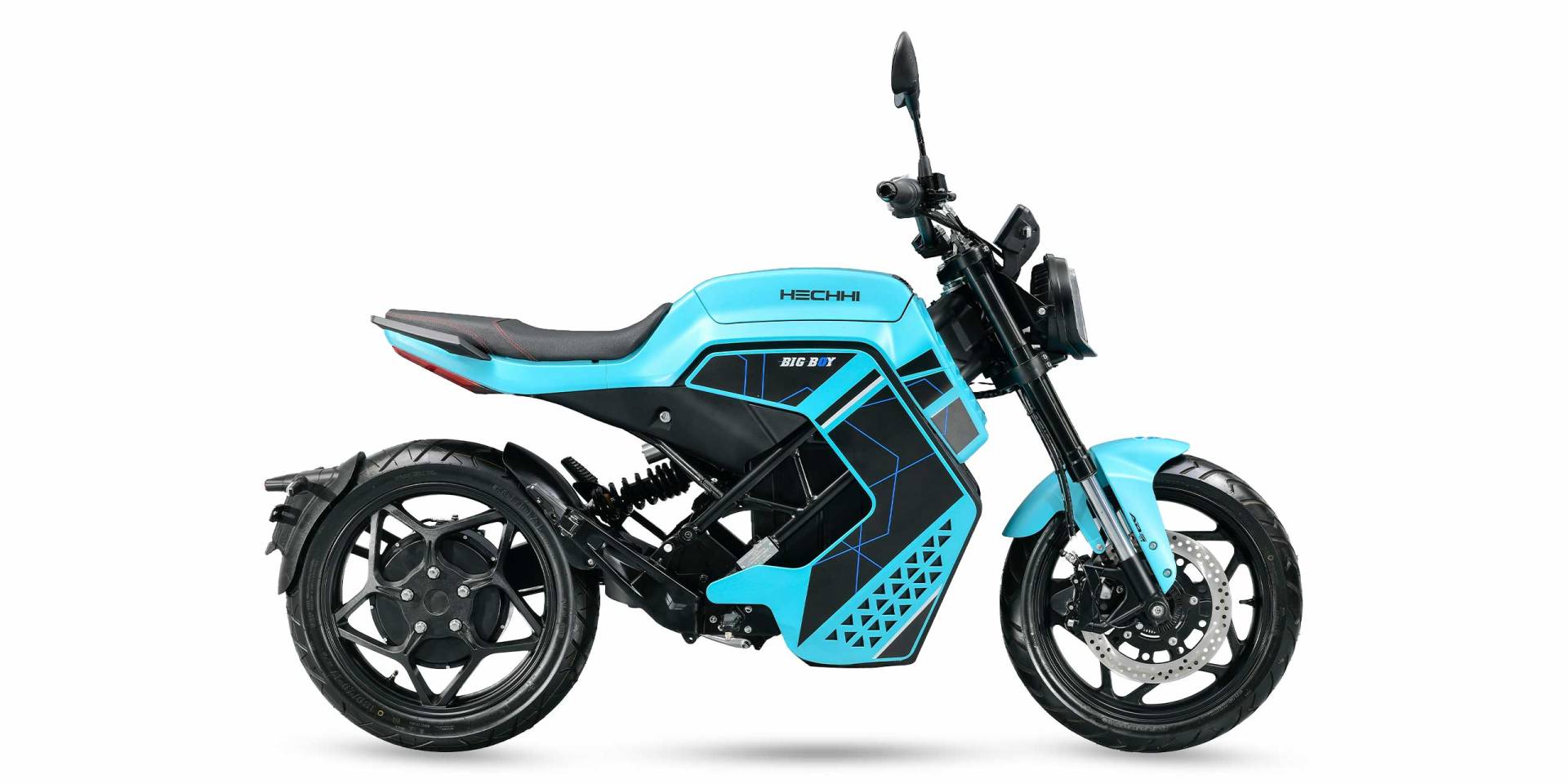

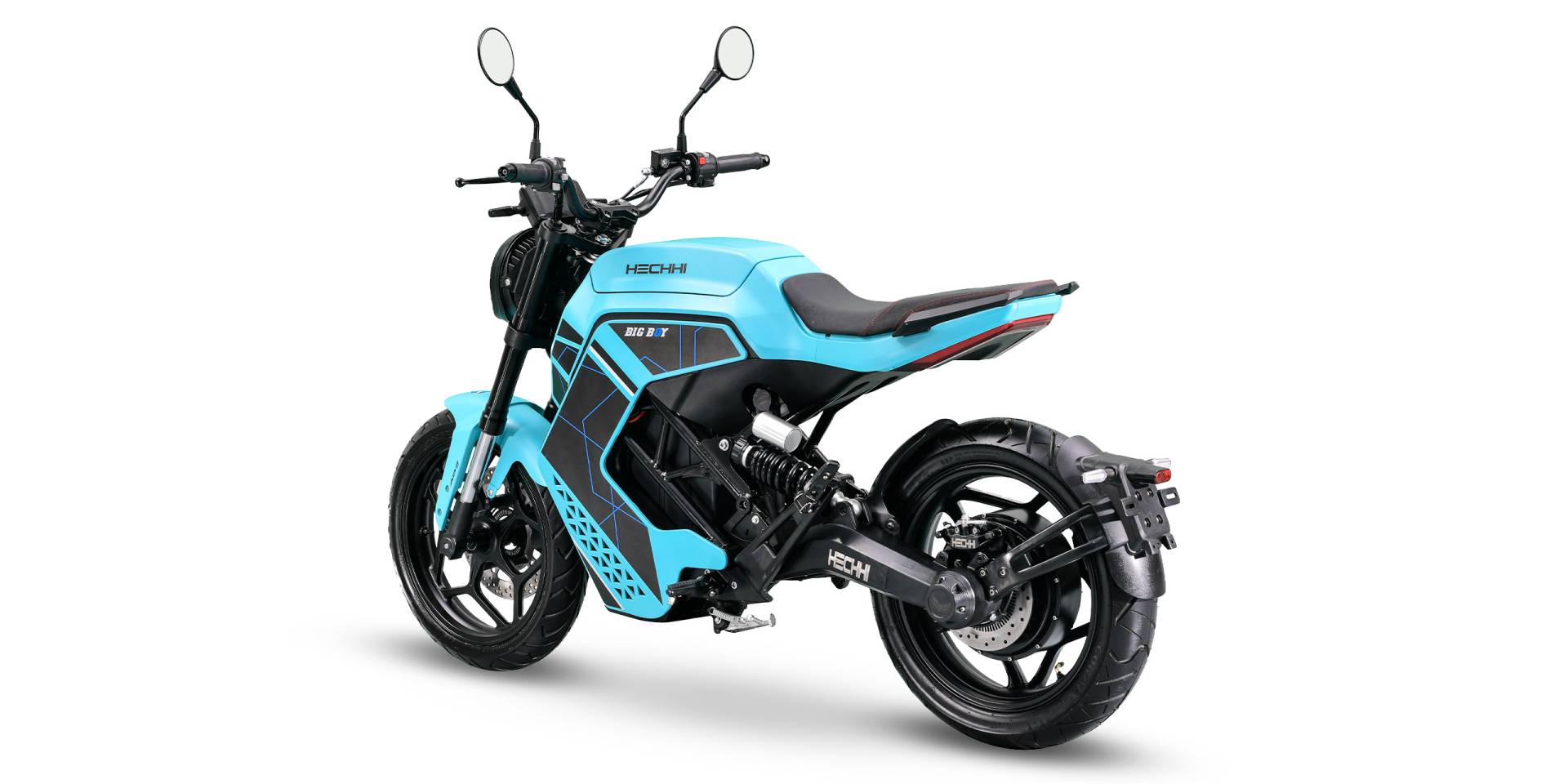

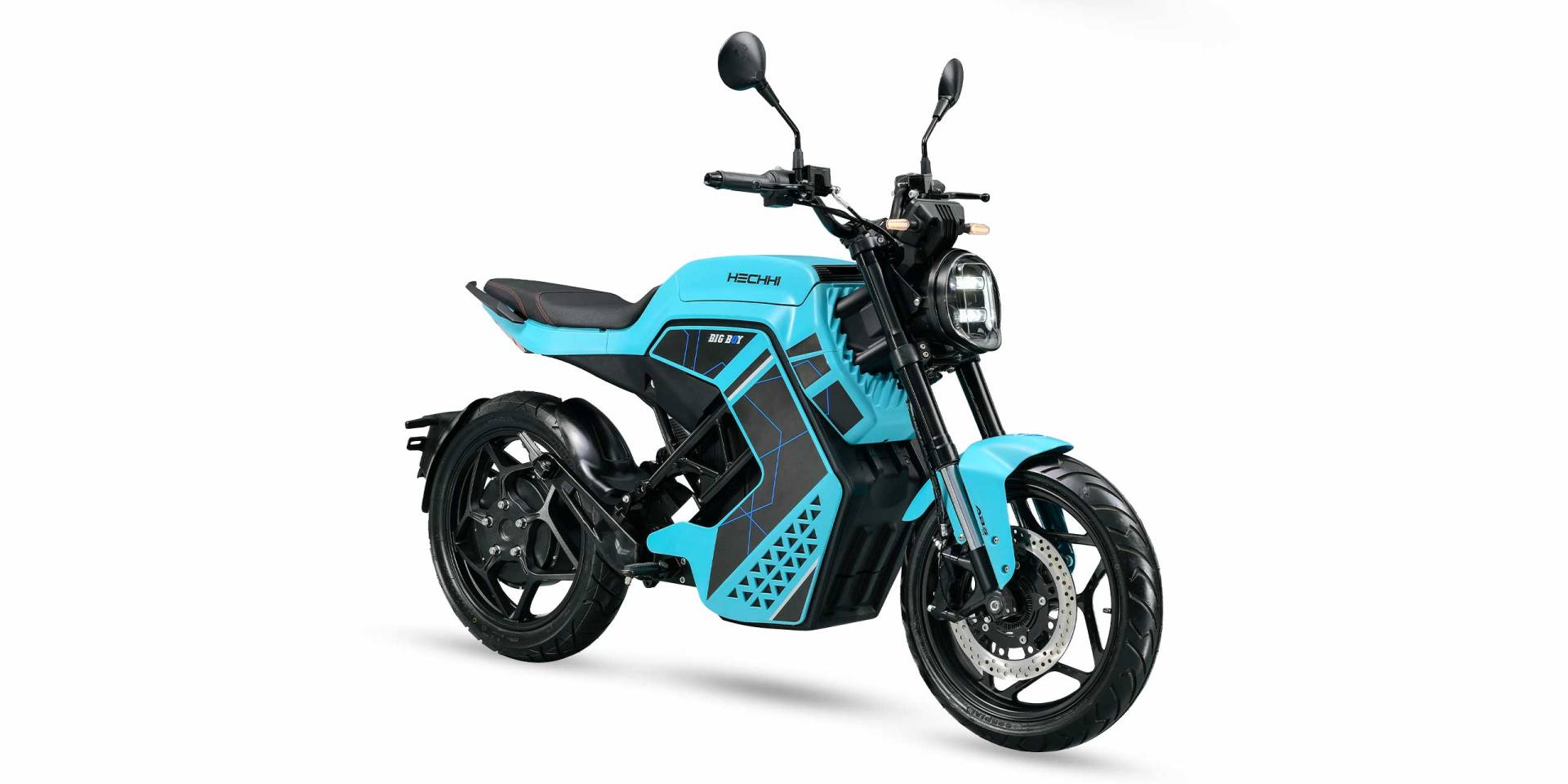

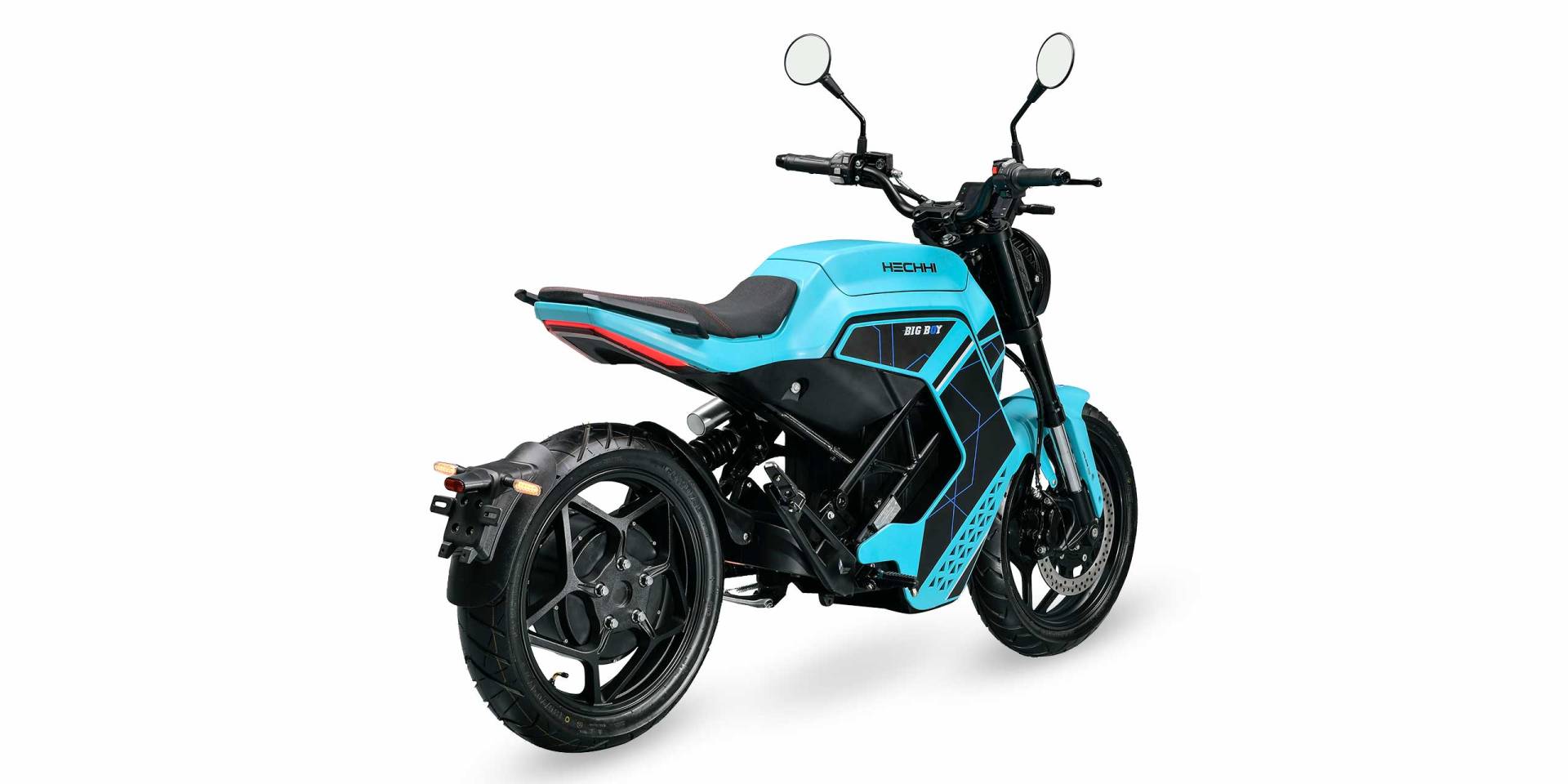

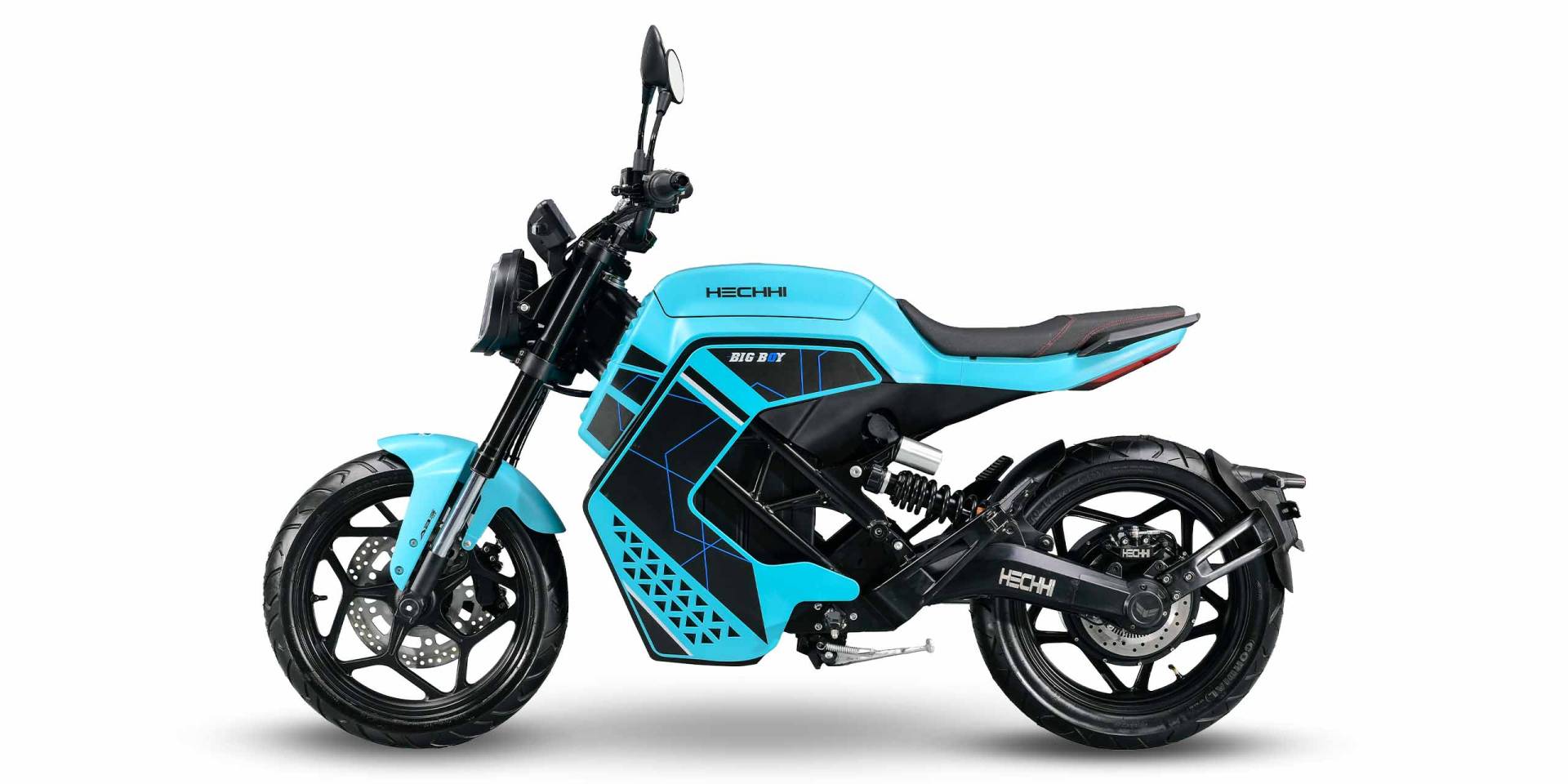

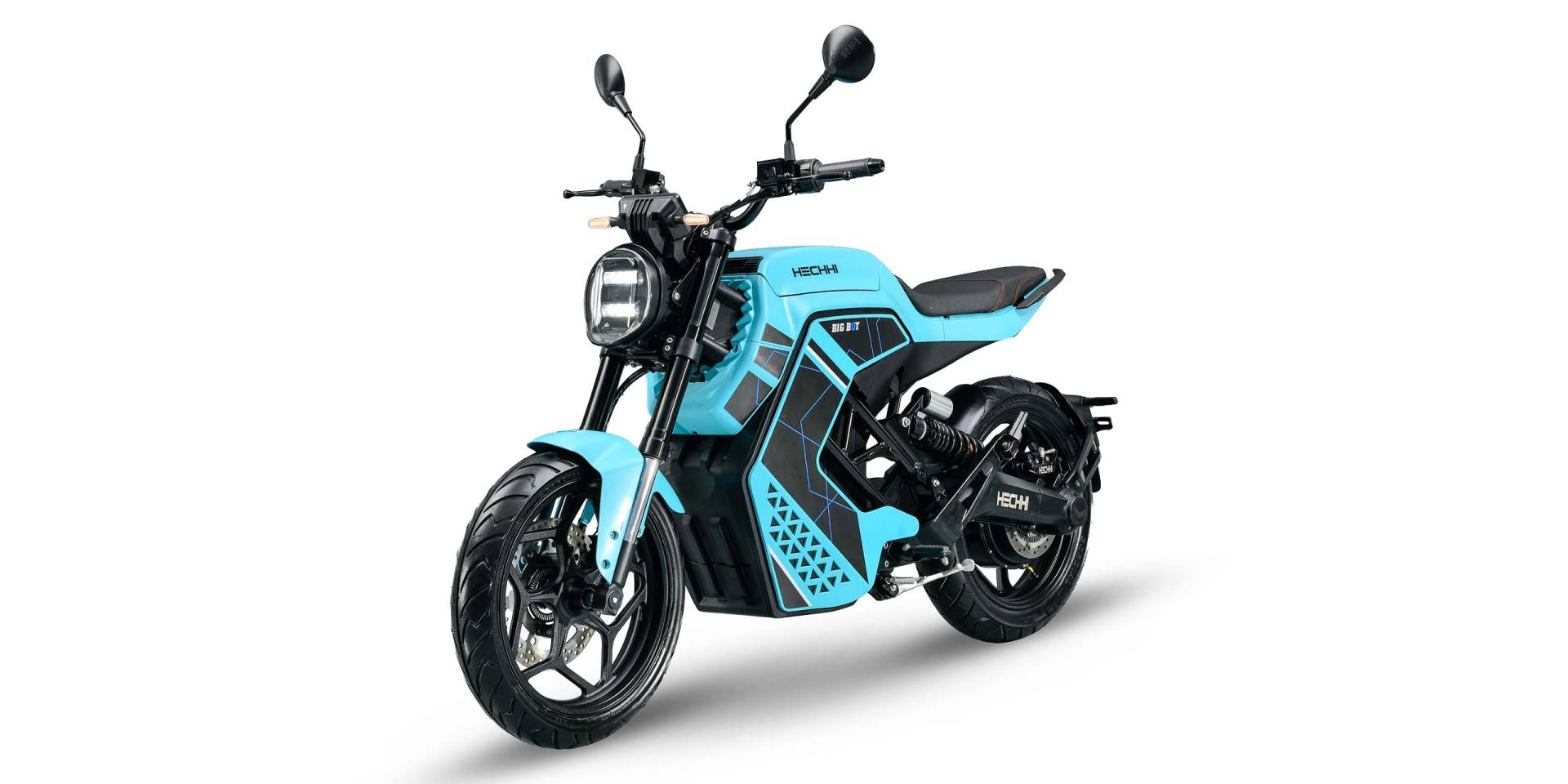

The gallery
